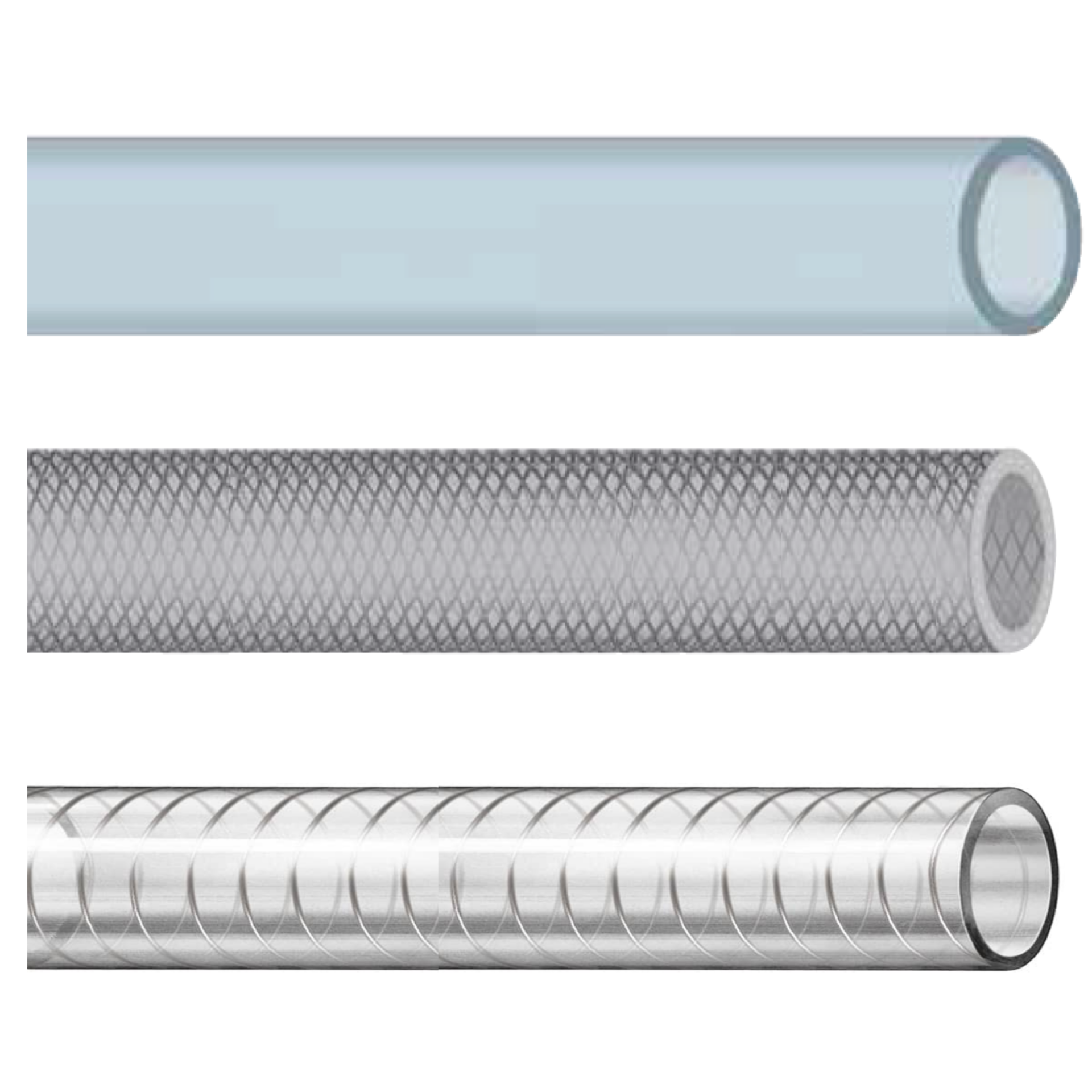

Rubberworx™ Braided tubing is designed to meet the needs for a wide variety of applications for a wide wet and media transfer. 3A and FDA PVC construction of tubing that will meet your requirements for weight, durability, or flexibility.
|
Category
|
Part Number
|
ID (in)
|
OD (in)
|
Tube Thickness
|
Pressure (psi)
|
Burst Ration (safety factor)
|
Vacuum Rating
|
Bend Radius
|
Braid Coverage
|
Pitch (in)
|
Weight (oz/yd)
|
Length (ft)
|
lbs/ft
| Reset filters | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1017114 | 1017114-025 | 0.25 | 0.438 | NA | 250 | 3:1 | NA | NA | NA | NA | NA | NA | 0.06 |
| ||
| 1017114 | 1017114-031 | 0.3125 | 0.531 | NA | 250 | 3:1 | NA | NA | NA | NA | NA | NA | 0.08 |
| ||
| 1017114 | 1017114-038 | 0.38 | 0.594 | NA | 225 | 3:1 | NA | NA | NA | NA | NA | NA | 0.09 |
| ||
| 1017114 | 1017114-050 | 0.5 | 0.75 | NA | 200 | 3:1 | NA | NA | NA | NA | NA | NA | 0.13 |
| ||
| 1017114 | 1017114-063 | 0.625 | 0.891 | NA | 200 | 3:1 | NA | NA | NA | NA | NA | NA | 0.18 |
| ||
| 1017114 | 1017114-075 | 0.75 | 1.031 | NA | 150 | 3:1 | NA | NA | NA | NA | NA | NA | 0.22 |
| ||
| 1017114 | 1017114-100 | 1 | 1.3 | NA | 125 | 3:1 | NA | NA | NA | NA | NA | NA | 0.30 |
| ||
| 1017114 | 1017114-125 | 1.25 | 1.62 | NA | 100 | 3:1 | NA | NA | NA | NA | NA | NA | 0.46 |
| ||
| 1017114 | 1017114-150 | 1.5 | 1.938 | NA | 100 | 3:1 | NA | NA | NA | NA | NA | NA | 0.64 |
| ||
| 1017114 | 1017114-200 | 2 | 2.49 | NA | 75 | 3:1 | NA | NA | NA | NA | NA | NA | 0.94 |
|
