1004103

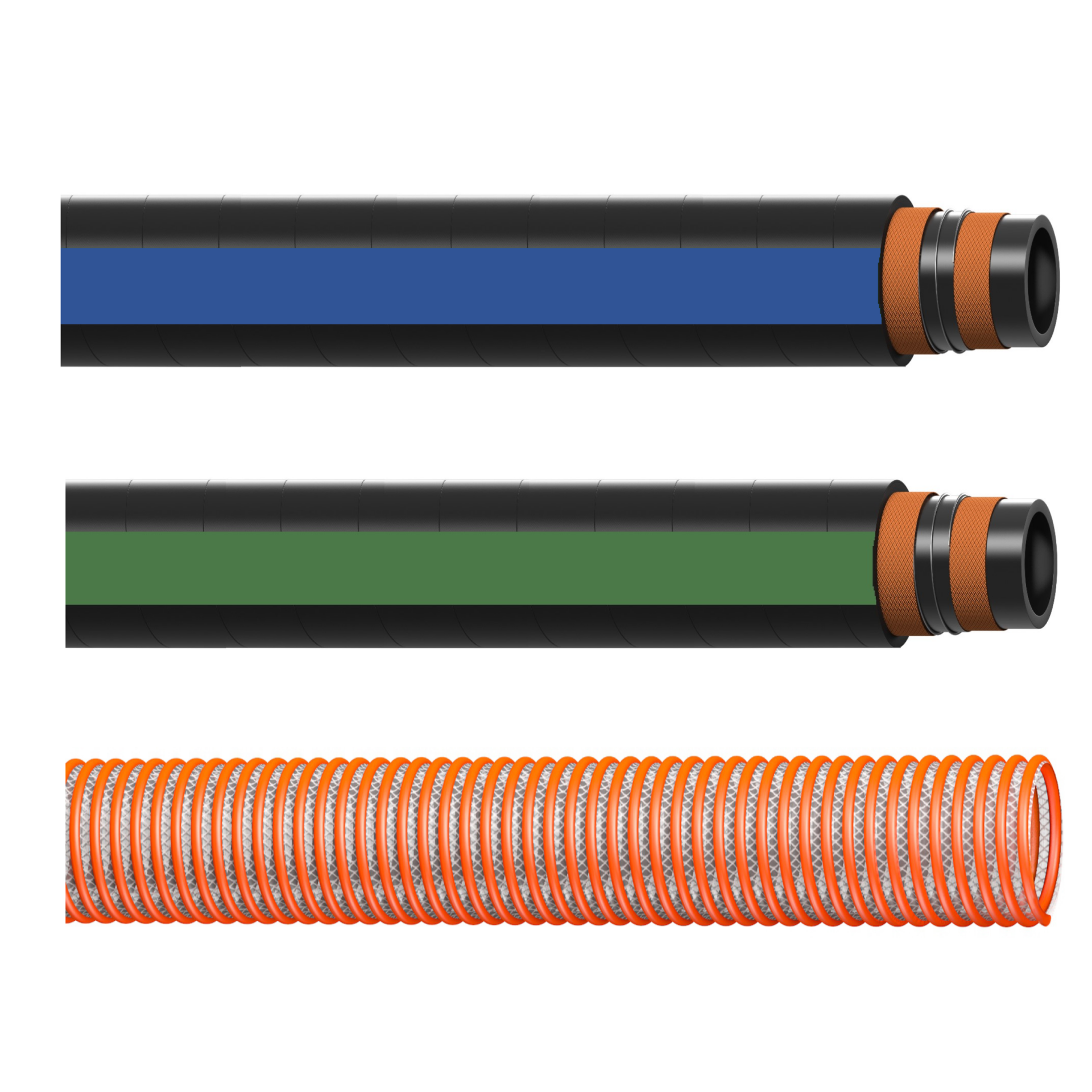

This heavy-duty water suction and discharge hose is designed for use in construction, dewatering, agricultural and industrial applications. Abrasion and ozone resistant EPDM cover for heavy duty industrial applications. EPDM tube designed to handle residual chemicals in water transfer applications

Tube: Black EPDM
Reinforcement: TEXTILE
Helix: STEEL
Temperature: -13°F to 180°F

Part Number
  • Remove
  • 1004103-100
  • 1004103-1000
  • 1004103-1200
  • 1004103-125
  • 1004103-150
  • 1004103-200
  • 1004103-250
  • 1004103-300
  • 1004103-400
  • 1004103-500
  • 1004103-600
  • 1004103-800
ID (in)
  • Remove
  • 1
  • 1.25
  • 1.5
  • 10
  • 12
  • 2
  • 2.5
  • 3
  • 4
  • 5
  • 6
  • 8
OD (in)
  • Remove
  • 1.4
  • 1.69
  • 10.98
  • 12.9
  • 2
  • 2.5
  • 2.99
  • 3.57
  • 4.57
  • 5.59
  • 6.73
  • 8.78
Tube Thickness
  • Remove
  • NA
Pressure (psi)
  • Remove
  • 150
Burst Ration (safety factor)
  • Remove
  • 3:1
Vacuum Rating
  • Remove
  • 28
Bend Radius
  • Remove
  • 10
  • 14
  • 19
  • 29
  • 32
  • 4
  • 44
  • 5
  • 50
  • 6
  • 66
  • 9
Braid Coverage
  • Remove
  • NA
Pitch (in)
  • Remove
  • NA
Weight (oz/yd)
  • Remove
  • NA
Length (ft)
  • Remove
  • NA
lbs/ft
  • Remove
  • 0.52
  • 0.67
  • 0.99
  • 1.29
  • 1.55
  • 10.83
  • 12.44
  • 2.17
  • 2.72
  • 4.70
  • 5.75
  • 8.51
Reset filters
1004103-100 1 1.4 NA 150 3:1 28 4 NA NA NA NA 0.52
Spec Sheet Get Quote
1004103-1000 10 10.98 NA 150 3:1 28 50 NA NA NA NA 10.83
Spec Sheet Get Quote
1004103-1200 12 12.9 NA 150 3:1 28 66 NA NA NA NA 12.44
Spec Sheet Get Quote
1004103-125 1.25 1.69 NA 150 3:1 28 5 NA NA NA NA 0.67
Spec Sheet Get Quote
1004103-150 1.5 2 NA 150 3:1 28 6 NA NA NA NA 0.99
Spec Sheet Get Quote
1004103-200 2 2.5 NA 150 3:1 28 9 NA NA NA NA 1.29
Spec Sheet Get Quote
1004103-250 2.5 2.99 NA 150 3:1 28 10 NA NA NA NA 1.55
Spec Sheet Get Quote
1004103-300 3 3.57 NA 150 3:1 28 14 NA NA NA NA 2.17
Spec Sheet Get Quote
1004103-400 4 4.57 NA 150 3:1 28 19 NA NA NA NA 2.72
Spec Sheet Get Quote
1004103-500 5 5.59 NA 150 3:1 28 29 NA NA NA NA 4.70
Spec Sheet Get Quote
1004103-600 6 6.73 NA 150 3:1 28 32 NA NA NA NA 5.75
Spec Sheet Get Quote
1004103-800 8 8.78 NA 150 3:1 28 44 NA NA NA NA 8.51
Spec Sheet Get Quote
